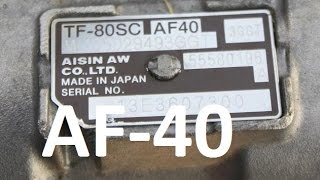

The Aisin AW TF-8# SC series is a 6-speed automatic transmission designed for use in transverse engine applications and produced by Aisin Seiki. It is designed to handle a maximum of 440 N⋅m (324.5 ft⋅lbf) of torque.[citation needed] It is built in Anjō, Japan.[1] It is also called the TF-80SC[2] (AWF21, AF40-6, AM6,[3] AW6A-EL) and TF-81SC (AF21).[4]

The design team set out to create a 6 speed automatic that fits in the same space as a manual gearbox. It measures 358 mm (14.1 in) in length and weighs 90 kg (198 lb). Its combined use of a conventional 5-pinion planetary gearset and a compound Ravigneaux gearset makes it incredibly light and compact. This combination is known as a Lepelletier arrangement. The shifting of gears is managed by a sophisticated computer programme which oversees a clutch-to-clutch actuation. Gear changes are accomplished by one clutch engaging the instant the clutch from the previous gear disengages. The transmission control module (TCM) is located inside the transmission housing, instead of being located outside it. The advantage of this is to reduce external wiring as well as to provide a constant environment for TCM operation which encourages longevity. One aspect of the advanced nature of the electronics is at idle (along with required foot brake depression on e.g. Opel Astra), it automatically selects neutral gear to reduce internal temperatures and improve fuel economy.

It is a sealed for life unit, using proprietary AW-1 transmission fluid which is labelled as being maintenance free.

Free download af 40 tf80sc manual repair. Repair or replace the 44175667-TF-80-af-40-6 Aisin warner. D20dt service manual.pdf 2 / 3.

All wheel drive transfer cases can be fitted to the AWTF-80 SC.

Specifications[edit]

Gear Ratios:

123456RFinal Drive
4.1482.3701.5561.1550.8590.6863.3943.20

Maximum Shift speeds:

7000 rpm (up to 350 Nm)
6500 rpm (350 Nm to 400 Nm)

Torque Converter Diameter:

260 mm (10.2 in)

Applications[edit]

6-speed Aisin Tf-80 Automatic Problems

BMW

  • 2014–present BMW i8

Fiat Chrysler Automobiles

Alfa Romeo
  • 2005–2011 Alfa Romeo 159[5][nb 1]
  • 2005–2010 Alfa Romeo Brera[5][nb 2]
  • 2006–2010 Alfa Romeo Spider[5][nb 3]
Fiat
  • 2005–2011 Fiat Croma[nb 4]
Lancia
  • 2008–2014 Lancia Delta[nb 5]

Ford Motor Company

Ford
  • 2005–2007 Ford Five Hundred
  • 2006–2012 Ford Fusion (US)[6][nb 6]
  • 2007–2014 Ford Mondeo MkIV 2.3 160 PS Petrol and 2.0 TDCi Diesel[7]
  • 2006–2014 Ford Galaxy 2.3 118kw / 160PS Petrol (as standard gearbox)

Lincoln Aisin Tf-80 Transmission

Lincoln
  • 2005–2012 Lincoln Zephyr
  • 2005–2012 Lincoln MKZ
Mercury
  • 2005–2010 Mercury Milan[6]
  • 2005–2007 Mercury Montego[6]

General Motors

Cadillac
  • 2005–2010 Cadillac BLS[nb 7]
  • 2009–2016 Cadillac SRX II[nb 8]
ChevroletDownload Software Aisin Tf-80 Sc Manual
  • 2008–2016 Chevrolet Cruze[1][nb 9]
Opel / Vauxhall
  • 2008–2017 Opel/Vauxhall Insignia
  • 2014–present Opel/Vauxhall Meriva
Saab
  • 2003–2014 Saab 9-3 II[nb 10]
  • 2013–2014 Saab 9-3 III
  • 2010–2012 Saab 9-5 II

Hyundai

  • 2006–2014 Hyundai Veracruz[5]

Jaguar

  • 2007–2009 Jaguar X-type[nb 11]

Land Rover

  • 2006–2014 Land Rover Freelander 2
  • 2011–2013 Land Rover Range Rover Evoque

Luxgen

  • 2014–2015 Luxgen S5[nb 12] 2.0T
  • 2014–2015 Luxgen U6[8][nb 13] 2.0T

Mahindra

  • 2015–present Mahindra XUV500

Mazda

  • 2005–2008 Mazda 6 I
  • 2006–2012 Mazda CX-7
  • 2006–present Mazda CX-9
  • 2006–present Mazda MPV III
  • 2007–2012 Mazda 6 II
Manual

PSA Peugeot Citroën

Citroën
  • 2010–2016 Citroën Jumpy
Peugeot
  • 2006–2008 Peugeot 307
  • 2007– Peugeot 308
  • 2006–2010 Peugeot 407
  • 2010–present Peugeot 408
  • 2011–2018 Peugeot 508
  • 2005–2010 Peugeot 607
  • 2008– Peugeot 3008
  • 2009– Peugeot 5008
  • 2010–2016 Peugeot Expert

Renault

Suzuki

  • 2014–present Suzuki Vitara (FWD & AWD)
  • 2015–present Suzuki Baleno
  • 2017–present Suzuki Swift
  • 2017–present Suzuki SX4 S-Cross

Volvo

  • 2005–2014 Volvo XC90[6][9][10][11] (FWD & AWD)[nb 14]
  • 2006–2009 Volvo S60[9] (FWD & AWD)[nb 15]
  • 2006–2008 Volvo V70 II (FWD & AWD)[nb 16]
  • 2006–2008 Volvo XC70 (AWD)
  • 2007–2016 Volvo S80 II[10][13] (FWD & AWD)[nb 17]
  • 2008–2016 Volvo V70 III[14] (FWD & AWD)[nb 18]
  • 2008–2016 Volvo XC70 II[10] (FWD & AWD)[nb 19]
  • 2009–2017 Volvo XC60[10] (FWD & AWD)[nb 20]
  • 2011[10]–2018 Volvo S60 II (FWD & AWD)[nb 21]
  • 2011–2018 Volvo V60 (FWD & AWD)[nb 22]
  • 2011–2012 Volvo S40 II (FWD)[nb 23]
  • 2011–2012 Volvo V50[15] (FWD)[nb 24]
  • 2011–2013 Volvo C30 (FWD)[nb 25]
  • 2011–2013 Volvo C70 II (FWD)
  • 2012–2014 Volvo V40 II (FWD)[nb 26]

Notes[edit]

  1. ^1.9 JTDm; 2.4 JTDm; 3.2 JTS
  2. ^2.4 JTDm; 3.2 JTS
  3. ^2.4 JTDm; 3.2 JTS
  4. ^1.9 JTDm; 2.4 JTDm
  5. ^1.8 DI Turbo
  6. ^3.5L V6
  7. ^1.9 D; 1.9 D (TST)
  8. ^2.8L
  9. ^US market; 2.0L Turbo Diesel
  10. ^1.9 TiD, 1.9 TTiD & Aero 2.8L
  11. ^2.2d
  12. ^2.0T
  13. ^2.0T
  14. ^D5 & D5 AWD, 3.2, T6 AWD and V8 AWD[12]
  15. ^2.4D, D5 & D5 AWD, 2,5T and R AWD[6] ('06-'08)
  16. ^2.4D, D5 & D5 AWD, 2,5T and R AWD ('06-'07)
  17. ^D5 & D5 AWD, 2.5T, 2.5FT, 3.2, T6 AWD and V8 AWD
  18. ^D4 AWD, D5 & D5 AWD, 2.5T, 2.5FT, 3.2 and T6 AWD[14]
  19. ^D4 AWD, D5 & D5 AWD, 2.5T, 2.5FT, 3.2 and T6 AWD[14]
  20. ^D4 AWD, D5 & D5 AWD and T6 AWD
  21. ^D5 & D5 AWD and T6 AWD
  22. ^D3, D5 & D5 AWD and T6 AWD
  23. ^D3 and D4
  24. ^D3 and D4
  25. ^D3 and D4
  26. ^D3 and D4
